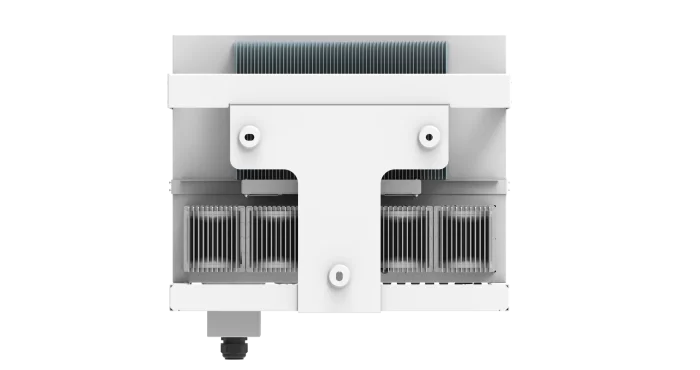

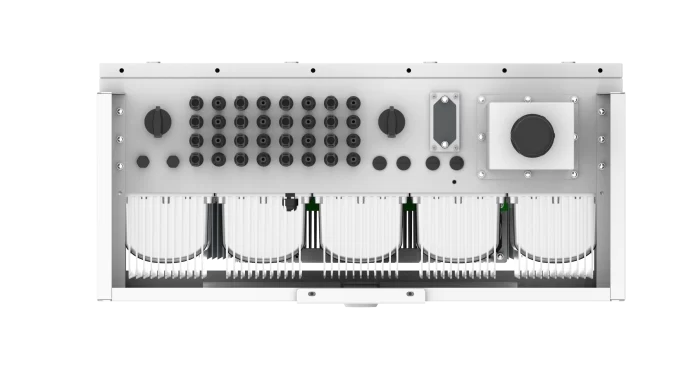

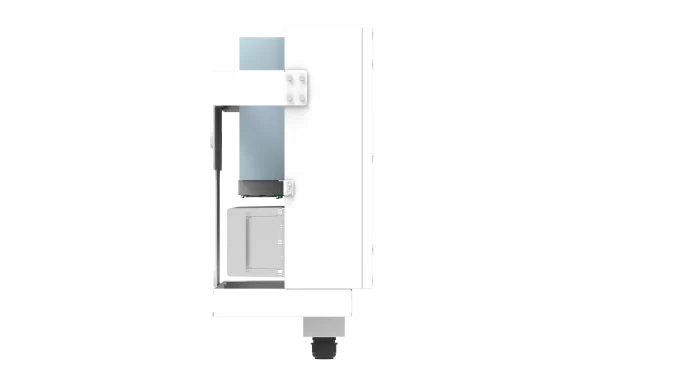

Deye 60kW On-Grid Inverter

The Deye 60kW Inverter Grid-Tied 3 Phase is a robust, three-phase grid-tied inverter designed for medium to large-scale commercial solar installations. The Deye 60kW Inverter is an advanced power conversion solution for medium to large-scale commercial solar installations. A Deye 60kW inverter is a powerful, three-phase device designed to convert solar energy into usable electricity for commercial and industrial applications. It’s ideal for large-scale solar installations, offering high efficiency, reliability, and advanced monitoring capabilities.

• Model SUN-60K-G

PV String Input Date

• Input Power: 78KW.
• Input Voltage: 1000V.
• Start-up Voltage: 250V.
• MPPT voltage range: 200-850V.
• Rated PV Input voltage: 600V.
• Input Short Circuit Current: 60+60+60+60A.
• Operating PV Input Current: 40+40+40+40A.
• No. of MPP Trackers/No. of Strings per MPP Tracker: 4/3+3+3+3.

AC Output Side

• Rated AC Output Active Power: 60kW.
• Max. AC Output Apparent Power: 66kVA.
• Rated AC output current: 90.9/87A.
• Max. AC Output Current: 100/95.7A.
• Rated output voltage/range: 220/380V, 230/400V 0.85Un-1.1Un.
• Grid connection Form 3L+N+PE.
• Rated Output Grid Frequency/range(Hz): 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz.
• Power Factor Adjustment Range: 0.8 leading to 0.8 lagging.
• Total Current Harmonic Distortion THDi: <3%.

General Data

• Cabinet Size (WxHxD mm): 700 *575 *297mm.
• Weight: 60kg.
• Warranty: 5 years.
• Type Of Cooling: Intelligent air cooling.

Conclusion:

• The Deye 60kW Inverter Grid-Tied 3 Phase is high-performance, efficient, and reliable for commercial solar systems. Moreover, advanced features include high-efficiency conversion, MPPT technology, real-time monitoring, and robust safety standards. Hence, it ensures optimal energy harvest and long-term stability. Discover the advantages of integrating this cutting-edge inverter into your solar power solutions today.
