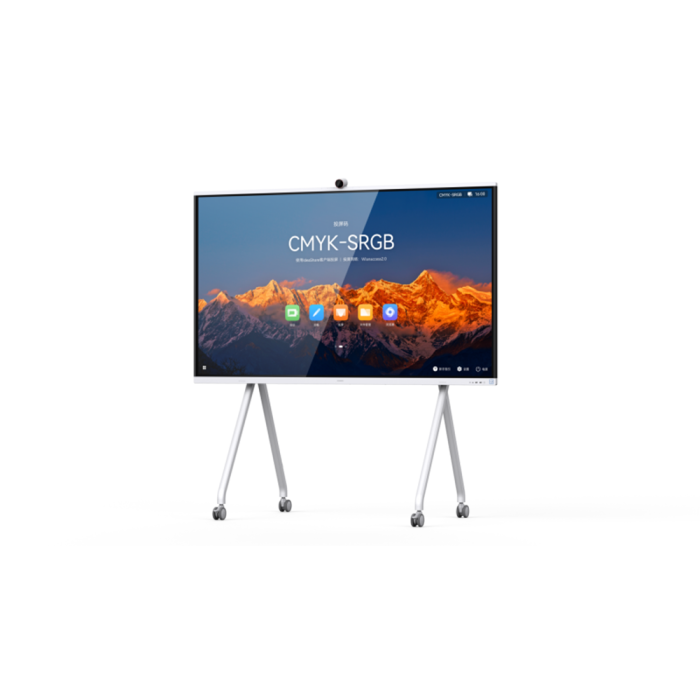

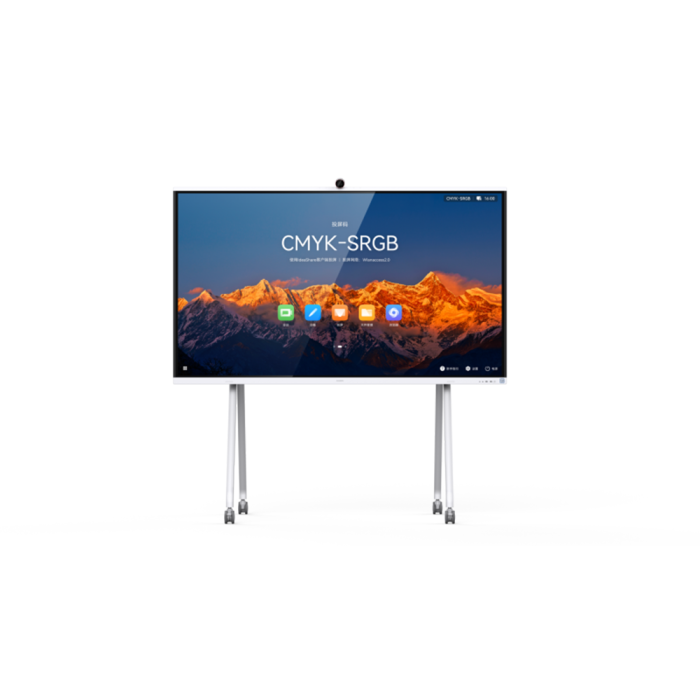

Huawei IdeaHub S2 Intelligent Collaboration Device 86-inch infrared screen – Jade white
HUAWEI IdeaHub S2 Range is built on the next-gen hardware platform architecture, equipped with Bring Your Own Meeting (BYOM), HD immersive meeting quality, Wi-Fi 6 for direct projection, and ultra-low writing latency, easily adapting to mainstream cloud meeting apps. It is a perfect solution for boundless collaboration and communication to fit in any room, such as regular meeting rooms, executive offices, and open office areas.
HIGHLIGHTS
BYOM
Bring Your Own Meeting (BYOM) with seamless transfer from personal devices to HUAWEI IdeaHub S2.
Wi-Fi 6 for Direct Projection
One-step projection using Wi-Fi Direct without the need for devices to share the same local area network (LAN).
Collaboration Unbounded
Multi-Window and App Multiplier deliver an enriched office ecosystem.
Professional-Level 4K Video Camera
2 μm² ultra-large photosite size doubles the signal-to-noise ratio (SNR). Huawei-developed AI algorithm ensures true-to-life, natural clarity.
AI-powered Audio and Video
Voice tracking, Auto-Framing, and acoustic baffle deliver immersive experience. 12-meter sound pickup, DNN-based de-reverberation, and AEC algorithm ensure clear voice from far away.
Intelligent Whiteboard
Annotate on full screen in full color with an all-new toolbar. Writing is effortlessly smooth with intelligent recognition and ultra-low latency.

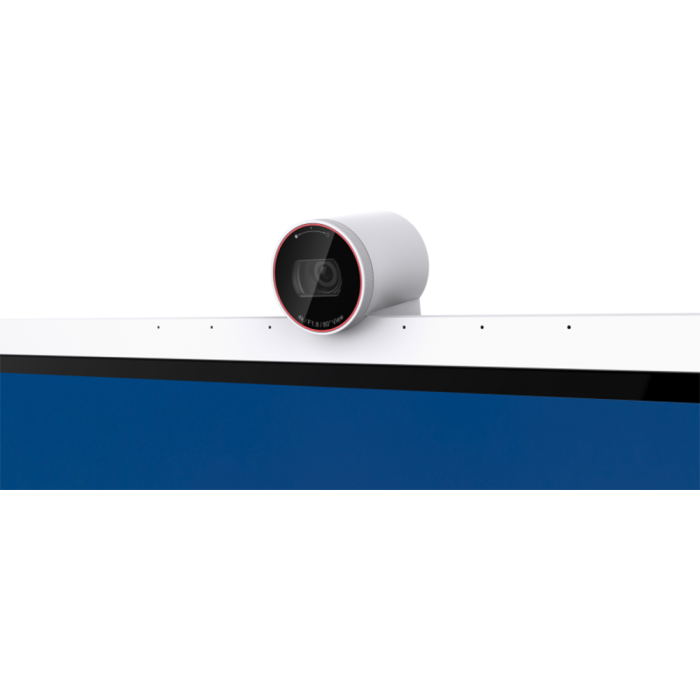

Professional 4K Video Camera
Vivid Restoration and Consistent Image
The camera pairs with a 4K image sensor with a 2 μm² ultra-large photosite size to create low-noise, true-to-life clarity. Its circulation heat dissipation technology reassures consistent resolution even after long meetings. The Huawei-developed imaging algorithm corrects the TV distortion to less than 2%, ensuring natural images.
Clarity Is Key
Clarity is assured through a beamforming microphone array with DNN1Â dereverberation and AEC algorithm for 12-meter ultra-long-distance sound pickup.
Powerful AI Capabilities for Smarter Meetings
Voice tracking ensures that the speaker is always in the center. Auto–Framing provides an optimal angle for multiple participants. Acoustic baffle shields external noise to make communications crystal clear.
HD Video Meetings
Features H.264 + SIP dual protocols, HD hardware codec, and fully upgraded on-premises meetings.
Smart Office Collaboration for Effective Productivity
Use personal devices to invoke the display, camera, microphone, and speaker of HUAWEI IdeaHub S2,connecting all of them together for a smooth and HD meeting experience.
Start Projection Without Network
Based on the innovative Wi-Fi 6 for direct projection technology, you only need to enable Wi-Fi on the IdeaHub and your PC/mobile phone without connecting to the network. The IdeaShare app automatically discovers the nearby IdeaHub to set up connections,5Â and it autocompletes the projection code after the first letter.6Â You can also use this function on your Huawei phone7Â through NFC or projection option in the drop-down menu.
Many Ways to Project for Different Scenarios
App-free projection on Huawei phones
Drop-down menu or NFC on mobile phones
One-click sharing without installing an app
Wired projection for important occasions
Multiple types of cables (Type-C and HDMI)
4K UHD stable connection without Wi-Fi interference
IdeaShare Key for guests and visitors
Plug-and-play feature without network connection8
4K UHD sharing
IdeaShare app for daily office work
Five mainstream operating systems9
Fast projection code entering
Intelligent Whiteboard As Easy As Pen On Paper
16 ms ultra-low latency allows intuitive writing on screen. Intelligent writing recognition automatically identifies words and figures.
Whiteboard content can be taken away by scanning the QR code via a browser.
-
Specifications
- Component
-
Device:Â 1
-
Stylus pen:Â 2
-
Cable:Â Power cable x 1
-
Rolling Stand: 86″
-
Wall-mounted bracket: 86″
-
IdeaShare Key: Optional (Type-A port)
-
OPS:Â Optional
- Screen
-
Resolution:Â 4K UHD (3840 x 2160)
-
Backlight type:Â D-LED
Lamination:Â Zero-gap bonding
- Writing
-
Writing latency: ≤16ms
-
Touch sensing distance: ≤1.5mm
-
Intelligent writing recognition: Yes (Supports recognition of Chinese, English, and 11 types of graphics)
- Camera
-
Resolution:Â 4K
-
Sharpness:Â 1800 lines
-
Lens cap for privacy protection: Yes
-
Horizontal FoV: 80°
-
TV distortion: ＜2%
- Speaker
-
Frequency domain:Â 100 Hz to 20 kHz
-
Number of speaker units:Â 4
-
Total power:Â 40 W
- Microphone
-
Sound pickup angle: 180°
-
Sound pickup distance:Â 12 m
-
Frequency domain:Â 80 Hz to 20 kHz
-
Optimized sound pickup:Â Sound location, echo cancellation, and automatic gain control
- Meeting
-
Native meeting apps:Â Huawei Cloud Meeting and WeLink
-
Dual streams (audio/video + data sharing):Â 1080p30fps+1080p30fps/4K8fps
-
BYOM: Yes
- AI Function
-
Auto-Framing: Yes
-
Intelligent tracking: Yes
-
Acoustic baffle: Yes
-
DNN-based dereverberation: Yes
- System
-
RAM:Â 8 GB
-
Flash:Â 64 GB
-
OS:Â HarmonyOS, Windows (OPS required)
-
Security:Â Embedded encryption chip that supports H.235, STARTTLS, TLS, SRTP encryption, Chinese cryptographic algorithms, secure boot, and TEE
-
Language:Â Simplified Chinese, English, French, Japanese, Arabic, Spanish, Russian, Portuguese, and Italian
- Wireless connection
-
Wi-Fi module:Â Wi-Fi 6
-
Wi-Fi frequency:Â 2.4 GHz + 5 GHz
-
NFC: Yes
- Port
-
Video input:Â HDMI cable x 1
-
Video output:Â HDMI cable x 1
-
Audio input:Â 3.5 mm (line-in) x 1, HD-AI x 1
-
Audio output:Â 3.5 mm (line-out) x 1
-
Other ports:
USB Type-A 3.0 x 3
USB Type-C x 1
RJ45 (10/100/1000 Mbit/s LAN) x 1
