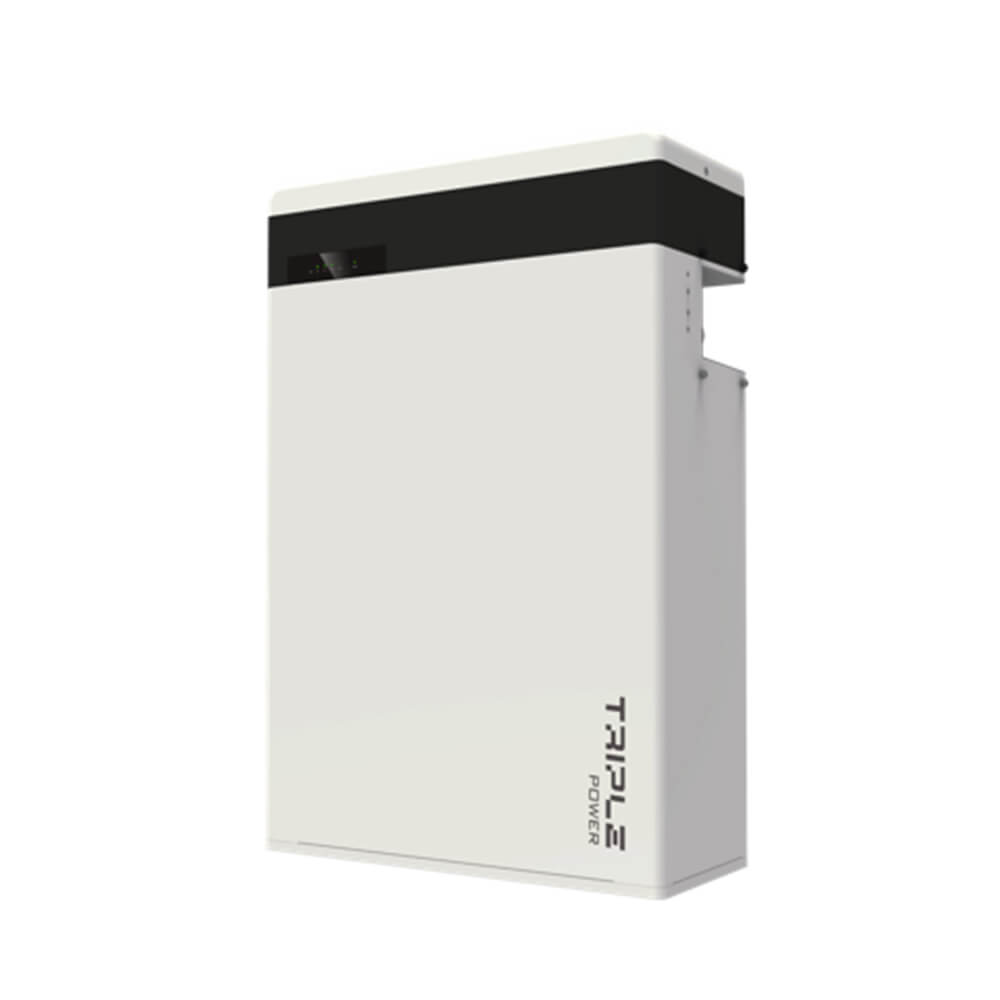

Solax Lithium-Ion Battery 5.8KWH 100V-131V Incl BMS (Master)

SolaX Power is delighted to announce compatibility with the new Triple Power high-voltage battery solution. Designed and manufactured by SolaX, Triple Power is offering a NEW 5.8kWh model that can be installed in series with up to 4 batteries enabling 23kWh of storage. The new Triple Power encompasses the very latest in LFP technology which ensures much safer installations with wider temperature tolerances. With a 10-year warranty and 90% depth of discharge, the new Triple Power battery is a flexible, practical, high-performance energy storage solution. Experience the cutting-edge features and impressive specifications of the Solax Lithium-Ion 5.8KWH Battery.

Specifications Solax Lithium-Ion Battery 5.8KWH 100V-131V Incl BMS (Master):

General Data
• Battery Type: Lithium-Ion
• Battery Module: T58
• BMS Module: INCLUDED
• Nominal Voltage: 115.2V
• Operating Voltage: 100V to 131V
• Total Capacity: 5.8KWH
• Usable Capacity: 5.2KWH
• Faradic Charge Efficiency: 99%
• Battery Roundtrip Efficiency: 95%
• Standard Power: 2.9KW
• Max Power: 3.5KW
• DOD: 100% DOD
• Recommend Charge / Discharge Current: 25A
• Max Charge / Discharge Current: 35A
• Short Circuit Current: 1440A
• Cycle Life: >6000 Cycles
• Available Operating Temperature Range: 0°C to 55°C
• Full-load Operating Temperature Range: 5°C to 48°C
• Humidity: 4% to 100% Condensing
• Altitude: Below 2000m
• Protection: IP55
• Communication: CAN2.0 / RS485
• Certification: CE, RCM, TUV(IEC62619), UL1973, ROHS, REACH
• Mounting: Floor or Wall Mount
